We decided to invest a little time and attention to our serving system.

We created a serving “wedge” instead of a “collar” for our larger freezer.  The collar is a common way to raise the lid of a freezer to allow kegs to fit inside, and mount faucets to the collar, converting it to a “keezer”.  Our freezer is plenty deep enough for kegs so converting it would only add the serving function to what we already have.

We have been serving our beer at a benefit for Children’s Hospital of Los Angeles.  We developed a “wedge” to allow us to have the serving function of a collar without permanent modification of the freezer.   A simple U shaped wooden structure with a flat face and wedge shaped sides did the trick.  A post here describes the old unit.

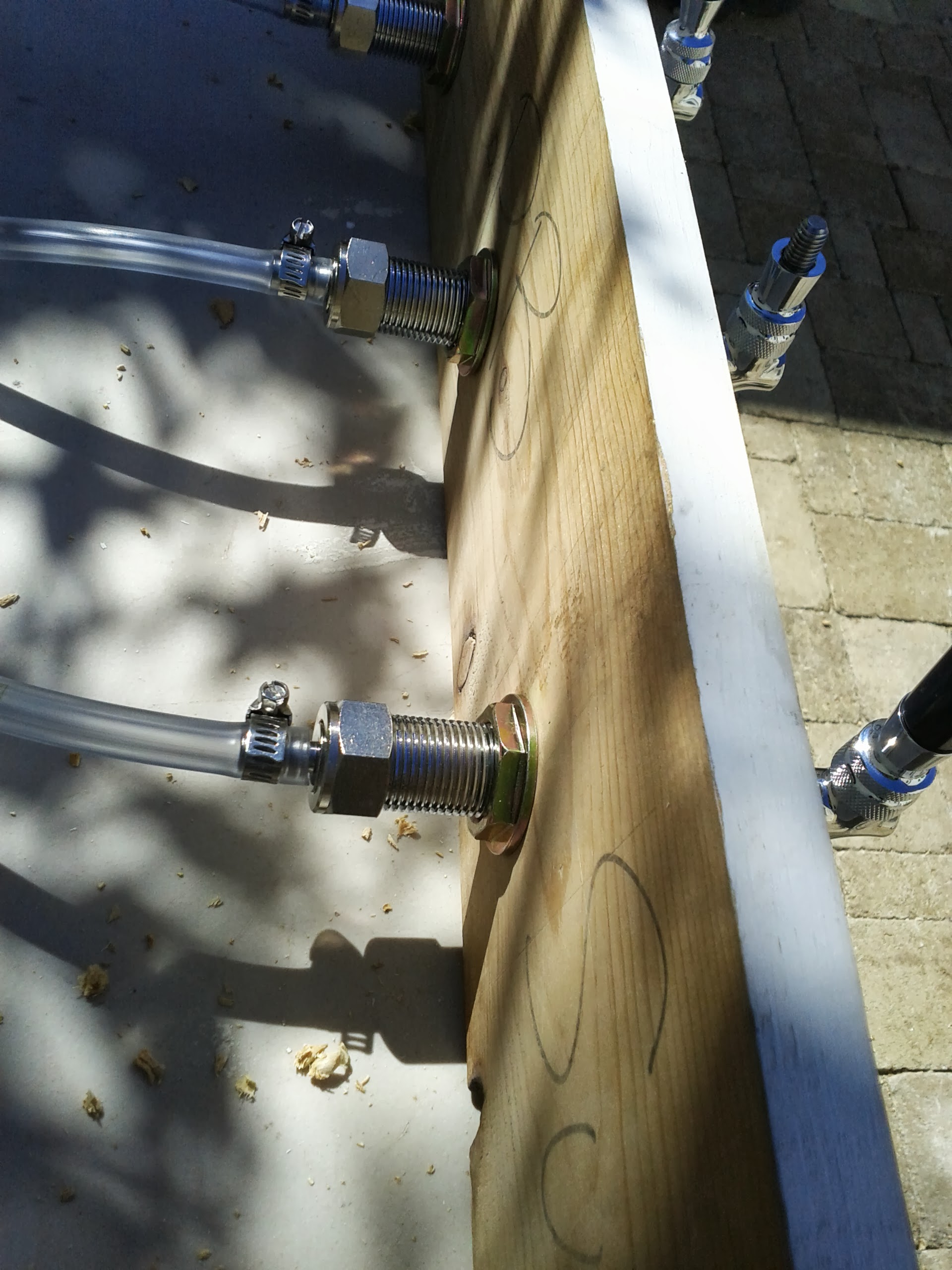

We simply re-drilled the six holes (to one inch) and installed 3 1/8 inch shanks, faucets that we had laying around, and thirty feet of hose (5 feet each).  We finished each hose with a  1/4 MFL fitting, as is our custom.  This allows us to attach ball, pin or sanke taps.

Still need to get one more faucet handle.

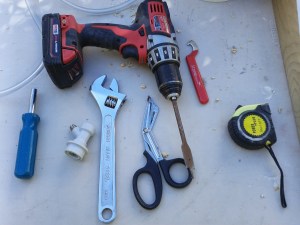

IMG_20130907_150224

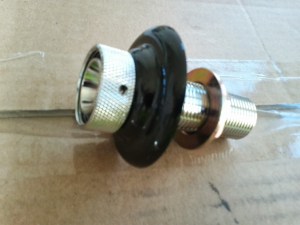

IMG_20130907_111012

IMG_20130907_145947

IMG_20130907_145940

IMG_20130907_151549

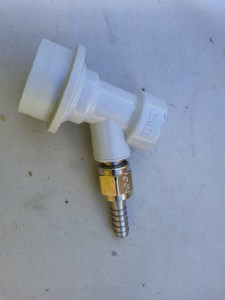

One trick to get the MFL fittings on the hose is to mount the fitting on a tap and use it to get the grip and leverage required to insert the barbed end into the hose.

IMG_20130907_145926
